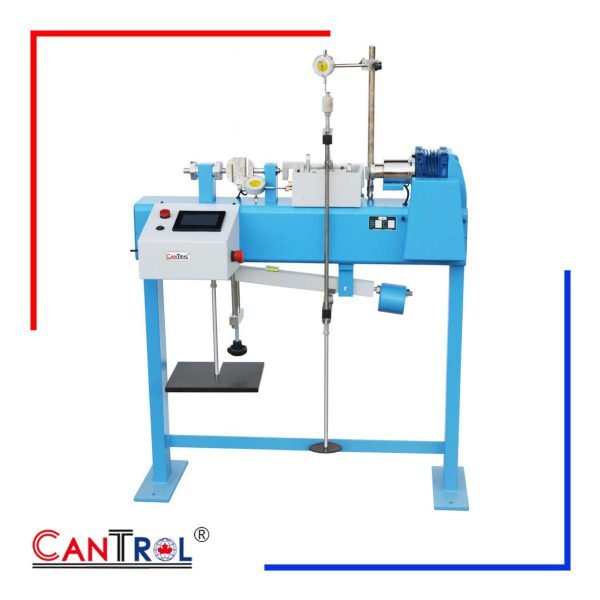

Digital Soil Direct Shear Testing Machine delivers an exceptional blend of precision, power, and reliability—making it an indispensable solution for laboratories that demand consistently accurate soil shear strength evaluations. Engineered to meet international testing standards, including AASHTO T 236 and ASTM D3080/3080M, this advanced system provides unmatched durability and seamless performance for geotechnical laboratories, universities, and civil engineering firms.
At the core of the Digital Soil Direct Shear Testing Machine is its next-generation digital automation, offering real-time monitoring, precise loading control, and consistently smooth operation. Its ability to provide dependable, repeatable results makes it a powerful asset for analyzing soil behavior under various shear load conditions—an essential requirement in foundation engineering, slope stability assessment, pavement design, and geotechnical research.
| Model | 2819012 | 2819021 |
| Description | Digital Soil Direct Shear Testing Machine | Digital Soil Direct Shear Testing Machine |
| Capacity | 5 kN, 10 kN accuracy | 5 kN, 10 kN accuracy |
| Resolution | 10 N | 10 N |
| Power Supply | 400 W, 220 V, 50 Hz, 1 ph | 400 W, 120 V, 60 Hz, 1 ph |
| Stroke Limit | 20 mm | 20 mm |
| Display | 4″ HMI, Touch Screen | 4″ HMI Touch Screen |
| Gauge | analogue | analogue |
| Calibration Method | Software | Software |
| Data Saving | yes | yes |
| Dimension | 300x950x1050 mm | 300x950x1050 mm |
| Weight | 110 Kg | 110 Kg |
The Digital Soil Direct Shear Testing Machine is built with a 5kN stainless steel load cell that delivers outstanding resolution (10N), ensuring every measurement meets strict accuracy requirements. Its Stepper Gearmotor system provides uniform loading, while the adjustable loading rate—from 0.05 to 7 mm/min—allows high-flexibility testing for multiple soil types.
This high-precision machine includes two durable dial gauges, stainless steel shear boxes (100×100 mm or 60×60 mm ordered separately), and 32 kg of calibrated weights, making it a complete, ready-to-use package.
The advanced technical features of the Digital Soil Direct Shear Testing Machine guarantee reliable test conditions:
5kN stainless steel load cell with 10N resolution
Stepper Gearmotor with uniform and smooth loading delivery
Adjustable loading rate: 0.05 – 7 mm/min
Real-time force display for maximum control
PLC-based control system with limit switches for safety
20 mm horizontal displacement gauge, 0.01 mm resolution
10 mm vertical displacement gauge, 0.01 mm resolution
Complete stainless steel construction for durability and corrosion resistance
These features together create a powerful combination of accuracy, longevity, and professional-grade performance.
Choosing the Digital Soil Direct Shear Testing Machine ensures your laboratory benefits from:
Highly accurate shear strength measurements
Long-lasting stainless steel components
Smooth and stable loading application
Compliance with international standards
Consistent results with Optimized keyword density and performance
Engineers and researchers depend on this machine for reliable soil characterization, making it an essential tool in foundation design, slope stability, highway engineering, and geotechnical analysis.
| Description | Digital Soil Direct Shear Testing Machine |
|---|---|
| Model | 2819012, 220 V, 50 Hz, 2819021, 120 V, 60 Hz |
| Capacity | 5 kN |
| Resolution | 10 N |
| Power Supply | 400 W, 220 V, 50 Hz., 1 ph, 400 W, 110 V, 60 Hz, 1 ph |
| Stroke Limit | 20 mm |
| Display | 4» HMI, touch screen |
| Gauge | analogue |
| Calibration Method | Software |
| Data Saving | yes |
| Dimension | 960x420x1030 mm, 270*900*1050 mm |
| Weight | 84 Kg |
