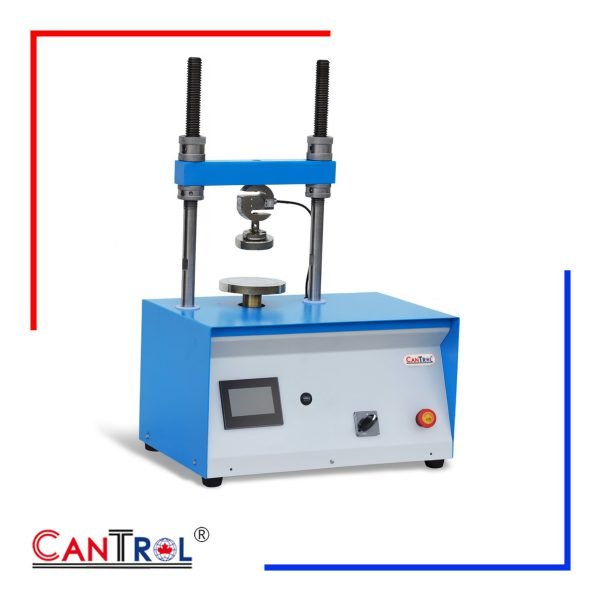

The CANTROL Digital Unconfined Compression Testing Machine delivers high-precision, fully digital control for unconfined compressive strength tests on cylindrical specimens in soils, rocks, or concrete applications. Featuring a rugged frame and advanced digital instrumentation, this machine simplifies test setup and provides accurate, repeatable results for quality control, R&D, and materials laboratories.
Key Features:
Digital load and displacement measurement with high resolution and real-time display
Motorised drive system for controlled compression rate and specimen failure detection
Software integration for data acquisition, graphing, and export of test results
Designed to support standards such as ASTM D2166, ASTM D2938, IS 9143 and other geotechnical/unconfined compression test methods
Robust construction ensures alignment and stability during the full loading cycle
This machine is ideal for labs seeking a modern, data-ready solution for unconfined compressive strength testing, enabling streamlined workflows and enhanced test traceability.
| Model | 2818011 | 2818012 |
| Description | Digital Unconfined Compression Testing Machine | Digital Unconfined Compression Testing Machine |
| Capacity | 10 kN | 10 kN |
| Resolution | 2 N | 2 N |
| Power Supply | 400 W, 120 V, 60 Hz, 1 ph | 400 W, 220 V, 50 Hz, 1 ph |
| Stroke Limit | 20 mm | 20 mm |
| Display | Digital | Digital |
| Calibration Method | Software | Software |
| Dimension | 600x360x850 mm | 600x360x850 mm |
| Weight | 65 kg | 65 kg |
| Discription | Digital Unconfined Compression Testing Machine |
|---|---|
| Model | 2818011, 2818012 |
| Capacity | 5 kN |
| Resolution | 1 N |
| Stroke Limit | 50 mm |
| Power Supply | 2818011- 400 W, 110 V, 60 Hz,, 2818012- 400 W, 220 V, 50 Hz, |
| Indicator | 7", Touch Screen, Full Color |
| Base Plate Size | 120 mm |
| Displacement (Flowmeter) | Digital Displacement Transducer 50mm, Div. 0.01mm |
| Dimension | 600x360x850 mm |
| Weight | 65 kg |
