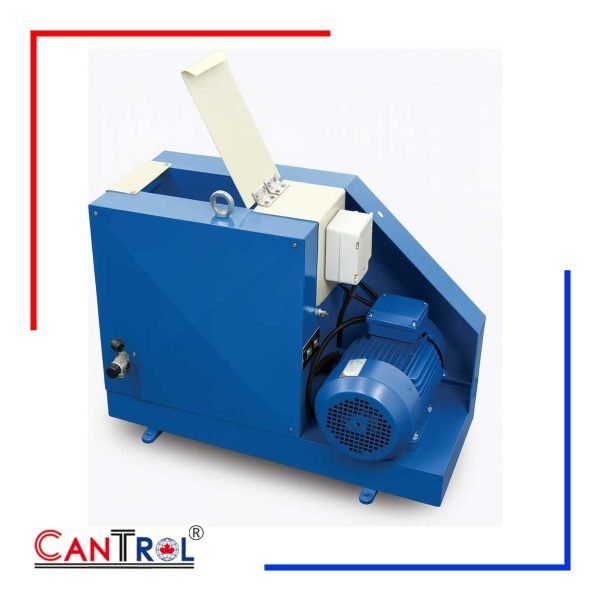

Cantrol Inc. Laboratory Jaw Crusher – Precision Crushing for Research and Industry

The Cantrol Inc. Laboratory Jaw Crusher is a high-performance machine designed for reliable pre-crushing of coarse materials in laboratory and pilot-scale applications. Ideal for mining, metallurgy, geology, mineralogy, glass, ceramics, and soil testing, this robust jaw crusher delivers consistent and efficient results in both intermittent and continuous operations.

Featuring a 4 × 5½ in (100 × 140 mm) feed opening, the Cantrol Jaw Crusher efficiently reduces feed sizes up to 2½ in (65 mm) into fine output between 0.04 – 0.20 in (1 – 5 mm) at rates up to 130 lb (300 kg) per hour. Its precision engineering ensures excellent performance across materials of different hardness — from hard quartz and basalt to soft claystone and limestone.

The unit includes 55 HRC hardened steel–chrome alloy jaws for superior durability and wear resistance. Its heavy-duty design features a case-hardened alloy steel eccentric shaft mounted in sealed needle bearings for long service life and smooth operation. A powerful 3 kW motor, equipped with overload protection and on/off switches, drives the crusher via a durable belt system mounted on a reinforced steel base.

Both fixed and movable jaws, along with tempered-steel lateral support walls, ensure uniform crushing and minimal sample contamination.

Key Features:

• Feed opening: 100 × 140 mm (4 × 5½ in)

• Final particle size: 1 – 5 mm

• Throughput: up to 300 kg/hour

• Hardened steel–chrome alloy jaws (55 HRC)

• Heavy-duty construction and sealed bearings

• 3 kW motor with overload protection

• Ideal for laboratory and pilot-scale use

Applications:
Mining • Metallurgy • Geology • Mineralogy • Glass Industry • Ceramics • Rocks • Soils
