Laboratory Riffle Boxes

Laboratory Riffle Boxes

Laboratory Riffle Boxes—also known as sample splitters or Jones splitters—are essential tools for ensuring precise, unbiased, and representative sampling in laboratories and field environments. When working with granular or powdered materials, the reliability of your results depends heavily on the quality of your sampling method. Using high-quality Riffle Boxes can dramatically improve accuracy, reduce sampling errors, and build confidence in the integrity of test results. This article explores what Riffle Boxes are, how they work, and why they are a powerful asset in any construction, materials testing, or quality-control setting.

Comparison Table

Model	1414010	1414020	1414030	1414040
Description	Sample Splitter	Sample Splitter	Sample Splitter	Sample Splitter
Chute Width	2 in	1 in	1/2 in	3/8 in
Chute Number	12	12	12	16
Material	Coated Baked Powder Steel	Coated Baked Powder Steel	Coated Baked Powder Steel	Coated Baked Powder Steel
Dimension	225×320 mm	190×225 mm	?	?
Weight	12 kg	10 kg	?	?

 Riffle Boxes – What Makes Them a Must-Have Sampling Tool?

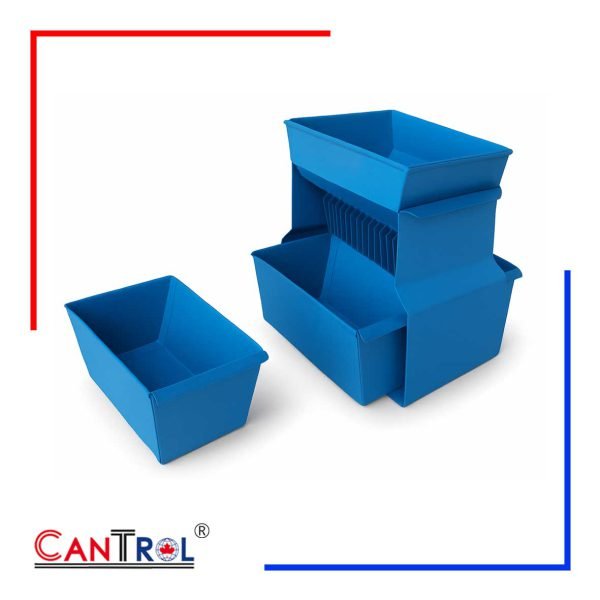

Riffle Boxes are designed to split large bulk samples into smaller, representative sub-samples without changing the characteristics of the material. They consist of a precise arrangement of equally spaced chutes, often called riffles, that guide particles into two separate containers. When a sample is poured into the top of the splitter, the material is divided alternately and uniformly.

This simple yet highly effective process ensures that each sub-sample accurately reflects the composition of the original bulk material. This is crucial in industries such as construction, concrete testing, soil analysis, geotechnical assessment, mining, agriculture, and pharmaceuticals.

 How Riffle Boxes Deliver Reliable, Representative Sampling

When accuracy matters, Riffle Boxes eliminate guesswork. Their symmetrical design and evenly spaced riffles allow particles to be split systematically. No matter how heterogeneous the sample is, the tool ensures that characteristics such as particle size, density, or moisture distribution remain proportionally distributed.

Step-by-Step Sampling Advantage of Riffle Boxes

1. Bulk Sample Placement:
   The original powder or granular material is slowly poured into the hopper at the top of the Riffle Box.

2. Even Material Distribution:
   As the material flows downward, the chutes divide it into alternating splits. Each particle has an equal probability of entering either container.

3. Representative Sub-Samples:
   The two resulting portions maintain the same composition ratio as the initial sample, enabling analysts to conduct accurate lab tests.

Why Accuracy Matters in Construction & Materials Testing

In fields such as concrete quality testing, aggregate grading, soil analysis, and materials research, even minor sampling biases can lead to:

• Misleading strength test results

• Incorrect mix designs

• Failed quality control assessments

• Costly retesting and project delays

Riffle Boxes provide a reliable solution by virtually eliminating these risks.

 Key Benefits of Using Riffle Boxes in Your Laboratory

1. Powerful Precision and Reliability

The equal-width chutes provide a high-accuracy splitting method, ensuring that each portion mirrors the overall material composition.

2. Superior Efficiency and Speed

Riffle Boxes allow technicians to prepare samples quickly without compromising accuracy—ideal for fast-paced labs or job sites.

3. Versatility Across Industries

Whether you’re testing concrete aggregates, soils, minerals, powders, seeds, or pharmaceuticals, Riffle Boxes adapt to a wide range of granular materials.

4. Durability and Long Service Life

High-quality Riffle Boxes are typically built from robust materials such as stainless steel or heavy-duty metal, ensuring years of reliable performance even in demanding environments.

Choosing the Right Riffle Boxes for Your Application

Selecting the correct size of a Riffle Box is critical. The riffle width must match the maximum particle size of your material. Too narrow, and particles clog; too wide, and the sample may not split accurately.

When shopping for Riffle Boxes, consider:

• Material (e.g., stainless steel for corrosion resistance)

• Number of chutes

• Chute width

• Sample capacity

• Portability and ease of handling

 Final Thoughts – Why Riffle Boxes Are a Game-Changing Tool

In any testing environment where accuracy matters, Riffle Boxes stand out as a powerful, dependable solution for splitting bulk samples into representative portions. Their simple yet precise design helps eliminate sampling bias, saving time, reducing mistakes, and improving the reliability of every test you perform.
