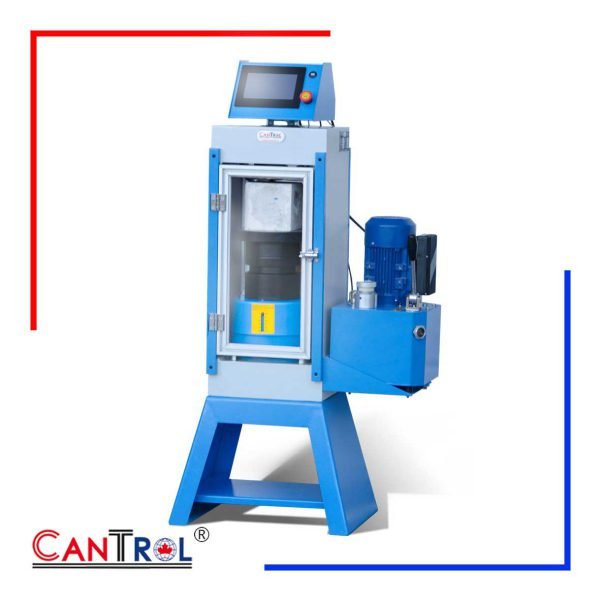

The Semi-Automatic Concrete Compression Machine offers a perfect balance between manual control and digital precision for laboratories assessing material strength. Because the unit utilizes a motor-driven hydraulic pump, it eliminates the physical strain of manual pumping while giving the operator control over the pace of the test. Consequently, this model serves as an ideal solution for facilities that require high-capacity testing with a focus on cost-efficiency. By choosing this professional equipment, you ensure that your cylinders and cubes undergo consistent, professional analysis.
We manufacture this equipment with a focus on mechanical stability and user safety. Specifically, the Semi-Automatic Concrete Compression Machine features a high-resolution digital indicator that displays real-time load and peak strength data. Furthermore, the operator can adjust the loading rate using a precision flow control valve, which allows for smooth transitions throughout the testing cycle. Because it uses a rigid, heavy-duty frame, the system maintains its alignment even when testing high-strength concrete mixes.
The design also includes an integrated safety valve to prevent the system from exceeding its maximum pressure capacity. Because laboratory environments can be demanding, we build the hydraulic components to resist wear and provide a long service life. In addition, the compact footprint ensures that the system fits easily into mobile laboratories or smaller testing facilities. As a result, this tool offers a dependable platform for routine quality control and material verification.
Using this specialized equipment enables your team to meet the requirements of relevant industry standards for compressive strength. Since accurate data is essential for project approval, the digital display provides clear readings that reduce the risk of transcription errors. Whether you are verifying a batch of ready-mix or testing masonry units, this instrument enhances your technical capabilities.
Ultimately, investing in semi-automatic technology provides a significant upgrade in productivity compared to manual systems. This Semi-Automatic Concrete Compression Machine combines rugged construction with modern electronics to support your quality assurance goals.
Motorized Hydraulic System: Provides effortless load application, which significantly increases the speed of high-volume testing.
Precision Flow Valve: Specifically designed to allow the operator to manage the load rate manually for different specimen types.
Digital Load Indicator: A high-visibility screen displays real-time results and peak values to ensure data accuracy.
High-Rigidity Steel Frame: The reinforced construction minimizes frame deflection to ensure uniform specimen loading.
Overload Protection: This safety mechanism prevents the system from operating beyond its rated capacity.
(Explore Cantrol’s concrete specimen cubic or cylindrical molds designed for different standards)
| Model | 2412011 | 2415011 | 2420011 | 2430011 |
| Description | Semi-Automatic Welded Frame Concrete Compression Machine | Semi-Automatic Welded Frame Concrete Compression Machine | Semi-Automatic Welded Frame Concrete Compression Machine | Semi-Automatic Welded Frame Concrete Compression Machine |
| Capacity | 1200 kN (270 klbs) | 1500 kN (338 klbs) | 2000 kN (450 klbs) | 3000 kN (680 klbs) |
| Power Supply | 1 hp, 120 V, 60 Hz, 1 ph/ | 1 hp, 120 V, 60 Hz, 1 ph | 1 hp, 120 V, 60 Hz, 1 ph/ | 1 hp, 120 V, 60 Hz, 1 ph/ |
| Resolution | 1 kN (200 lb) | 1 kN (200 lb) | 1 kN (200 lb) | 1 kN (200 lb) |
| Distance Between Platens | 345 mm (13.6″) | 345 mm (13.6″) | 345 mm (13.6″) | 345 mm (13.6″) |
| Stroke Limit | 50 mm (1.97″) | 50 mm (1.97″) | 50 mm (1.97″) | 50 mm (1.97″) |
| Piston Seals & Guides | PTFE | PTFE | PTFE | PTFE |
| Controller & Display | 7″ Full-Color Touch Screen | 7″ Full-Color Touch Screen | 7″ Full-Color Touch Screen | 7″ Full-Color Touch Screen |
| Communication Port | Serial Communication Port-RS232 | Serial Communication Port-RS232 | Serial Communication Port-RS232 | Serial Communication Port-RS232 |

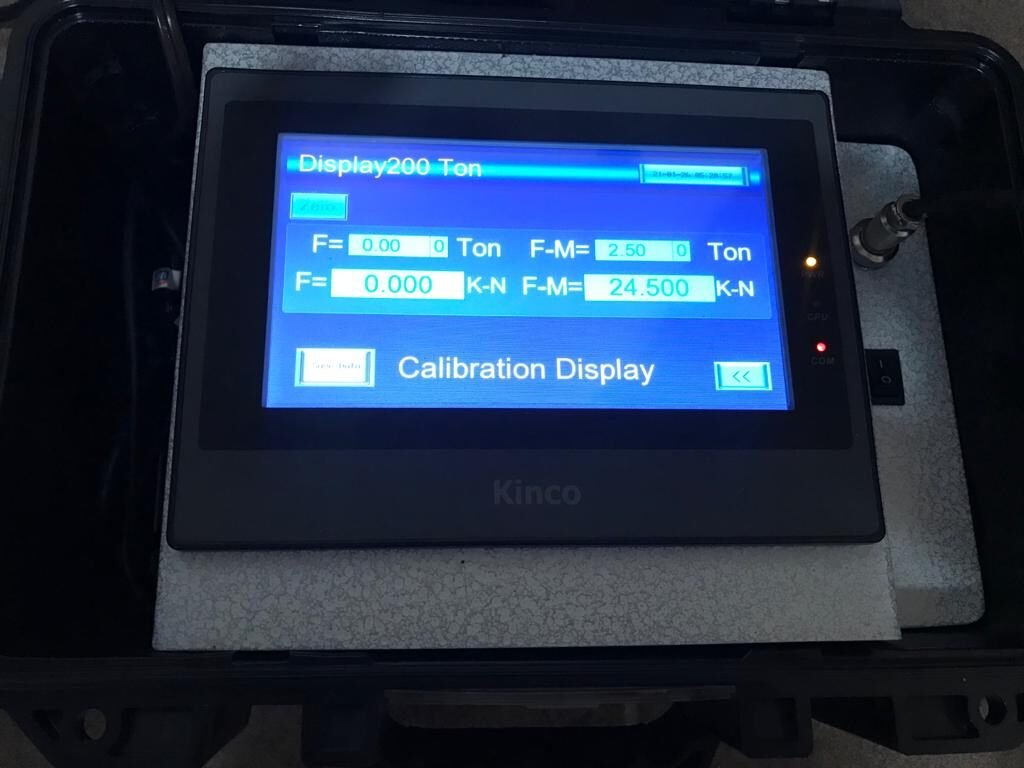

| Calibration Method | 10 Selected Points | 10 Selected Points | 10 Selected Points | 10 Selected Points |
| Data Saving | 500 Tests Data in Internal Memory and USB | 500 Tests Data in Internal Memory and USB | 500 Tests Data in Internal Memory and USB | 500 Tests Data in Internal Memory and USB |
| Oil Tank Capacity | 18 L (4.5 gal) | 18 L (4.5 gal) | 18 L (4.5 gal) | 18 L (4.5 gal) |
| Software | Yes | Yes | Yes | Yes |
| Dimension | 700x390x1200 mm | 720x400x1200 mm | 770x410x1250 mm (30.3×16.1×49.2 in) | 820x470x1350 mm (32.3×18.5×53.1 in) |
| Weight | 365 Kg | 430 Kg | 490 kg (1080 lb) | 850 kg (1874 lb) |
| Model | 2412012 | 2415012 | 2420012 | 2430012 |
| Description | Semi-Automatic Welded Frame Concrete Compression Machine | Semi-Automatic Welded Frame Concrete Compression Machine | Semi-Automatic Welded Frame Concrete Compression Machine | Semi-Automatic Welded Frame Concrete Compression Machine |
| Capacity | 1200 kN (270 klbs) | 1500 kN (338 klbs) | 2000 kN (450 klbs) | 3000 kN (680 klbs) |
| Power Supply | 1 hp, 220 V, 50 Hz, 1 ph | 1 hp, 220 V, 50 Hz, 1 ph | 1 hp, 220 V, 50 Hz, 1 ph | 1 hp, 220 V, 50 Hz, 1 ph |
| Resolution | 1 kN (200 lb) | 1 kN (200 lb) | 1 kN (200 lb) | 1 kN (200 lb) |
| Distance Between Platens | 345 mm (13.6″) | 345 mm (13.6″) | 345 mm (13.6″) | 345 mm (13.6″) |
| Stroke Limit | 50 mm (1.97″) | 50 mm (1.97″) | 50 mm (1.97″) | 50 mm (1.97″) |
| Piston Seals & Guides | PTFE | PTFE | PTFE | PTFE |
| Controller & Display | 7″ Full-Color Touch Screen | 7″ Full-Color Touch Screen | 7″ Full-Color Touch Screen | 7″ Full-Color Touch Screen |
| Communication Port | Serial Communication Port-RS232 | Serial Communication Port-RS232 | Serial Communication Port-RS232 | Serial Communication Port-RS232 |
| Calibration Method | 10 Selected Points | 10 Selected Points | 10 Selected Points | 10 Selected Points |
| Data Saving | 500 Tests Data in Internal Memory and USB | 500 Tests Data in Internal Memory and USB | 500 Tests Data in Internal Memory and USB | 500 Tests Data in Internal Memory and USB |
| Oil Tank Capacity | 18 L (4.5 gal) | 18 L (4.5 gal) | 18 L (4.5 gal) | 18 L (4.5 gal) |
| Software | Yes | Yes | Yes | Yes |
| Dimension | 700x390x1200 mm | 720x400x1200 mm | 770x410x1250 mm (30.3×16.1×49.2 in) | 820x470x1350 mm (32.3×18.5×53.1 in) |
| Weight | 365 Kg | 430 Kg | 490 kg (1080 lb) | 850 kg (1874 lb) |
| Description | Welded Frame Semi-Automatic Concrete Compression Machine |
|---|---|
| Model | 2412011-1200kN-120 V, 60 Hz,, 2412012-1200kN-220 V, 50 Hz,, 2415011-1500kN-120 V, 60 Hz,, 2415012-1500kN-220 V, 50 Hz,, 2420011-2000kN-120 V, 60 Hz,, 2420012-2000kN-220 V, 50 Hz,, 2430011-3000kN-120 V, 60 Hz,, 2430012-3000kN-220 V, 50 Hz, |
| Capacity | 2000 kN (450 klbs), 3000 kN (680 klbs) |
| Power Supply | 1 hp, 120 V, 60 Hz, 1 ph |
| Resolution | 1 kN (200 lb) |
| Distance Between Platens | 45 mm (13.6") |
| Stroke Limit | 50 mm (1.97") |
| Piston Seals & Guides | PTFE |
| Controller & Display | 7" Touch Screen, Full Color |
| Communication Port | Serial Communication Port-RS232 |
| Calibration Method | 10 Selected Points |
| Data Saving | 500 Tests Data in Internal Memory and USB |
| Oil Tank Capacity | 18 litr (4.5 gallon) |
| Software | Yes |
| Dimension | 770x410x1250 mm (30.3×16.1×49.2 in), 820x470x1350 mm (32.3×18.5×53.1 in) |
| Weight | 490 kg (1080 lb), 850 kg (1874 lb) |
