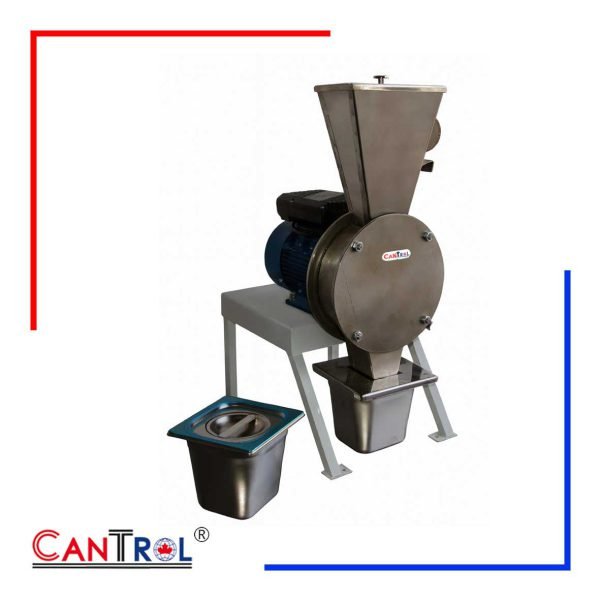

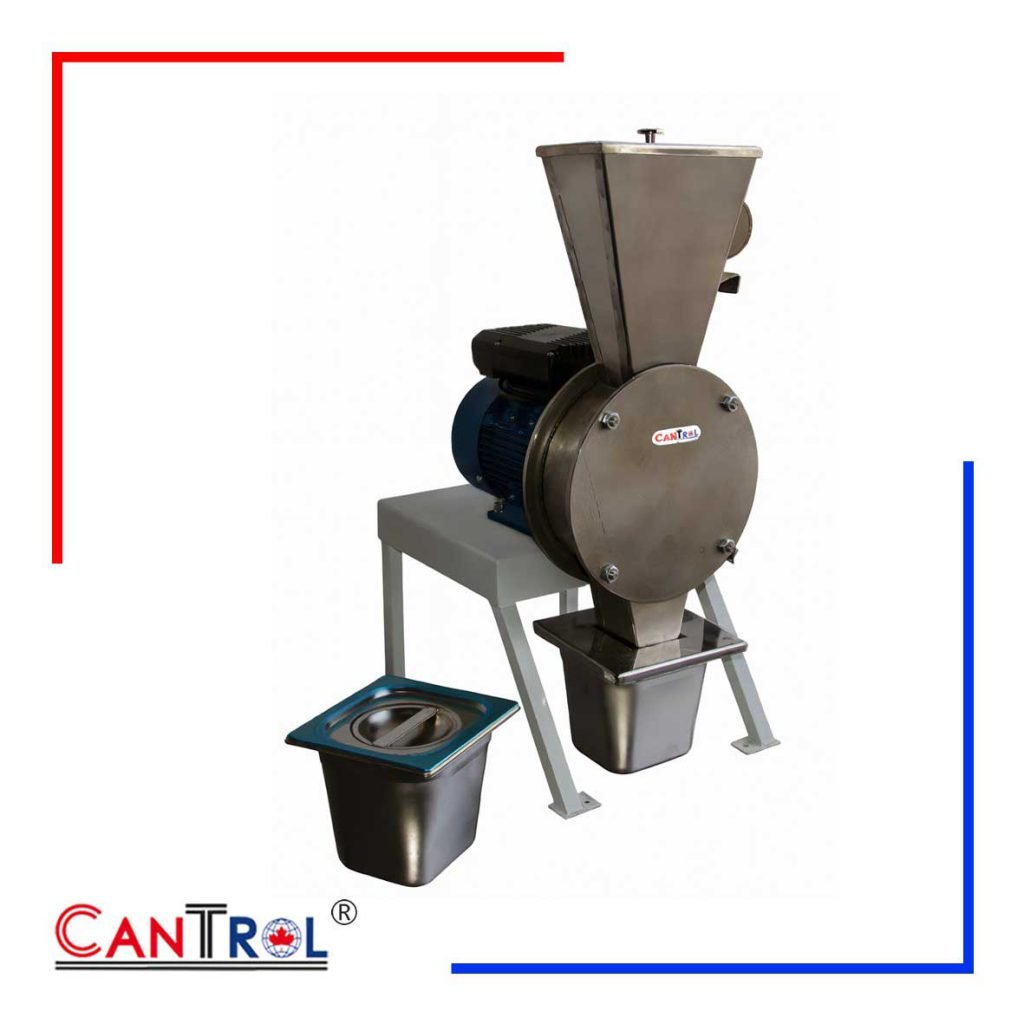

Soil Sample Grinder

The Soil Sample Grinder quickly prepares dry soil samples for Atterberg limits, particle-size analysis, and other standard laboratory tests. It is an efficient method for reducing agglomerations of caked soil to individual grains, and much less labor intensive than manual mortar and pestle operation. It preserves true grain size for accurate and repeatable test results. The hopper has a 0.950 (2 pints) capacity and features a manually operated gate to control the feed rate to the grinding chamber. All construction of the grinder and grinder propellers are made of anti-rust S. Steel. operation is simple, just load the hopper, start the grinder, and use the gate to control the material feed. A No. 10 (2.0mm), No.4 (4.75), No.35 wire mesh stainless steel are included to retain larger particles. Most soil types are processed completely in less than 15 seconds per pint. The direct drive motor and grinding device is mounted on a sturdy tripod stand, with an in-line switch to control motor operation motor and grinding unit is mounted on a sturdy painted steel four-pod stand. An in-line switch controls motor operation. A stainless steel lid covers the hopper during operation. A 2-liter S. Steel container with lid comes with Grinder.

Model	210246	210245
Description	Soil Sample Grinder	Soil Sample Grinder
Capacity	0.950 lit. (2 pints)	0.950 lit. (2 pints)
Power Supply	750 W, 220 V, 50 Hz, 1 ph	750 W, 110 V, 60 Hz, 1 ph
Material	Stainless Steel	Stainless Steel
Dimension	300x450x600 mm	300x450x600 mm
Weight	38 kg	38 kg
