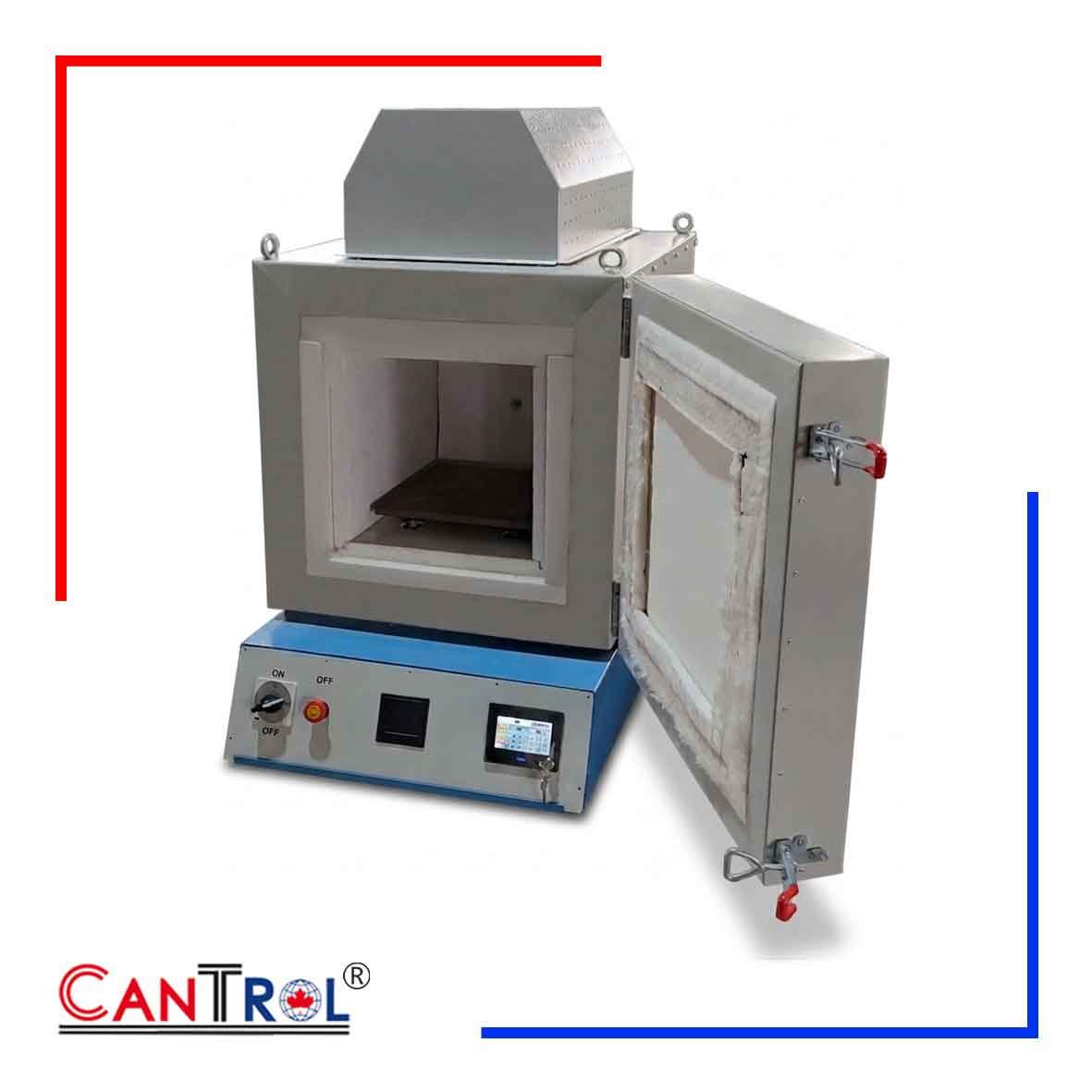

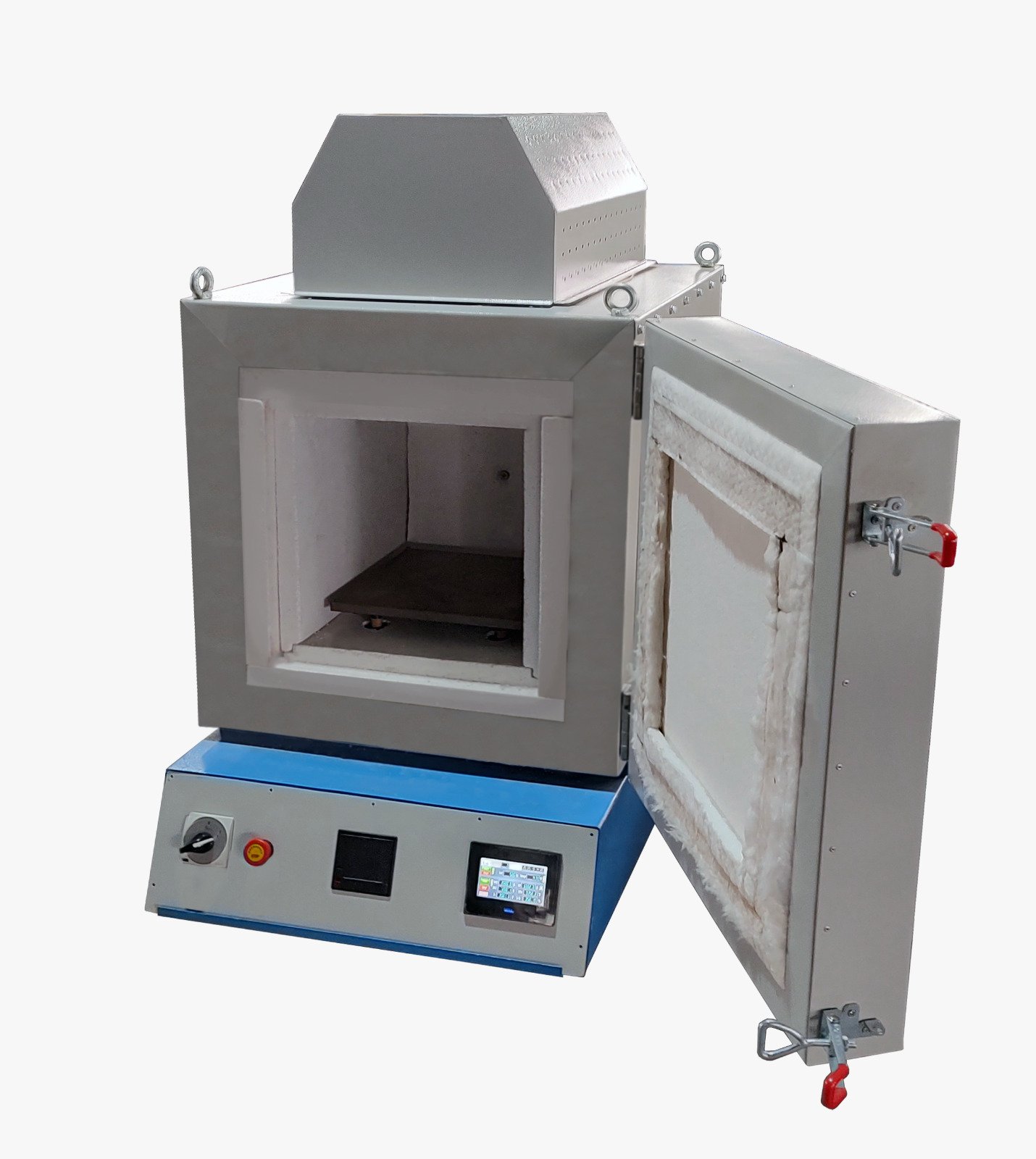

CANTROL Asphalt Content Ignition Furnace Model:1616022 is a high-precision ignition oven that can determine, in full automatic mode, the binder content of asphalt mixes in full conformance with the most common international standards. It combines an ignition oven with a continuous weighing system that monitors the loss of weight of the asphalt sample and automatically determines, at the end of the test, the binder content and percentage. An independently controlled auxiliary afterburner chamber significantly reduces the furnace emissions.

Specifications

• Maximum Temperature: 650°C
• Temperature Accuracy: ± 2°C
• Chamber Dimensions: 370mm*370mm*370 mm
• Power: 6 kW, 25 A, 220-240V,50/60Hz.
• Weighing Capacity: up to 4000g
• Balance Readability: 0.1 g
• External Dimensions: 700 x 800 x 1200 mm
• Weight: 200 kg
• Heating Elements: High-performance ceramic embedded elements
• Insulation: High-efficiency ceramic insulation
• Control System: PID controller with touchscreen
• Data Output: Integrated Printer
• Construction: heavy-gauge painted steel
• Exhaust Port Diameter   100 mm / 4 inches
• Compliant with Standards: ASTM D6307, AASHTO T308
