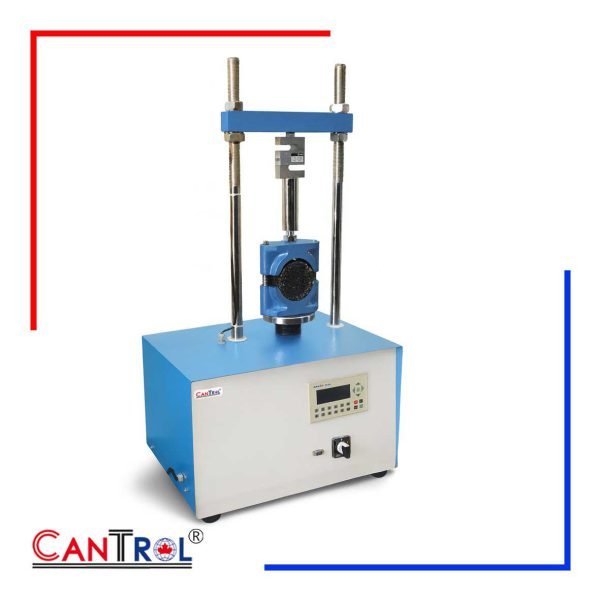

Automatic Marshal Testing Machine

Cantrol designs and manufactures two types of Marshall Testing Machines and CBR-Marshall Testing Machines. The machines are bench mounted, compression frame are manufactured with sturdy and compact two-Stainless Steel-column frames and adjustable upper cross beam. The frame capacity is 50kN equipped with 50kN loadcell with 20N resolution. Speed of loading is 50mm/min (2 inch/min) in all models and Marshall stability breaking head should be ordered separately. This machine comprise 50kN (10N) S. Steel load cell and displacement sensor (LVDT) by 0.01mm accuracy.After starting test for loading, all data such as load and displacement will be shown on display at real time and can be transfer to PC in an Excel file. At failure point, loading platen and breaking head will return to the initial position automatically.

Description	Automatic Marshall Testing Machine	Automatic Marshall Testing Machine
Model	1614011	1614012
Supply power	110V, 60Hz, 1ph	220V, 50Hz, 1ph
Capacity	50kN	50kN
Resolution	20N	20N
Indicator	7″ Touch Screen, Full Color	7″ Touch Screen, Full Color
LoadRate	50mm/min(2in/min)	50mm/min(2in/min)
Displacement(Flowmeter)	LVDT, 60mm*0.01 travel	LVDT, 60mm*0.01 travel
Reporting Software	Processing and Report Generation Software, Microsoft Excel	Processing and Report Generation Software, Microsoft Excel
Dimension	650x470x1060mm	650x470x1060mm
Weight	96kg	96kg
