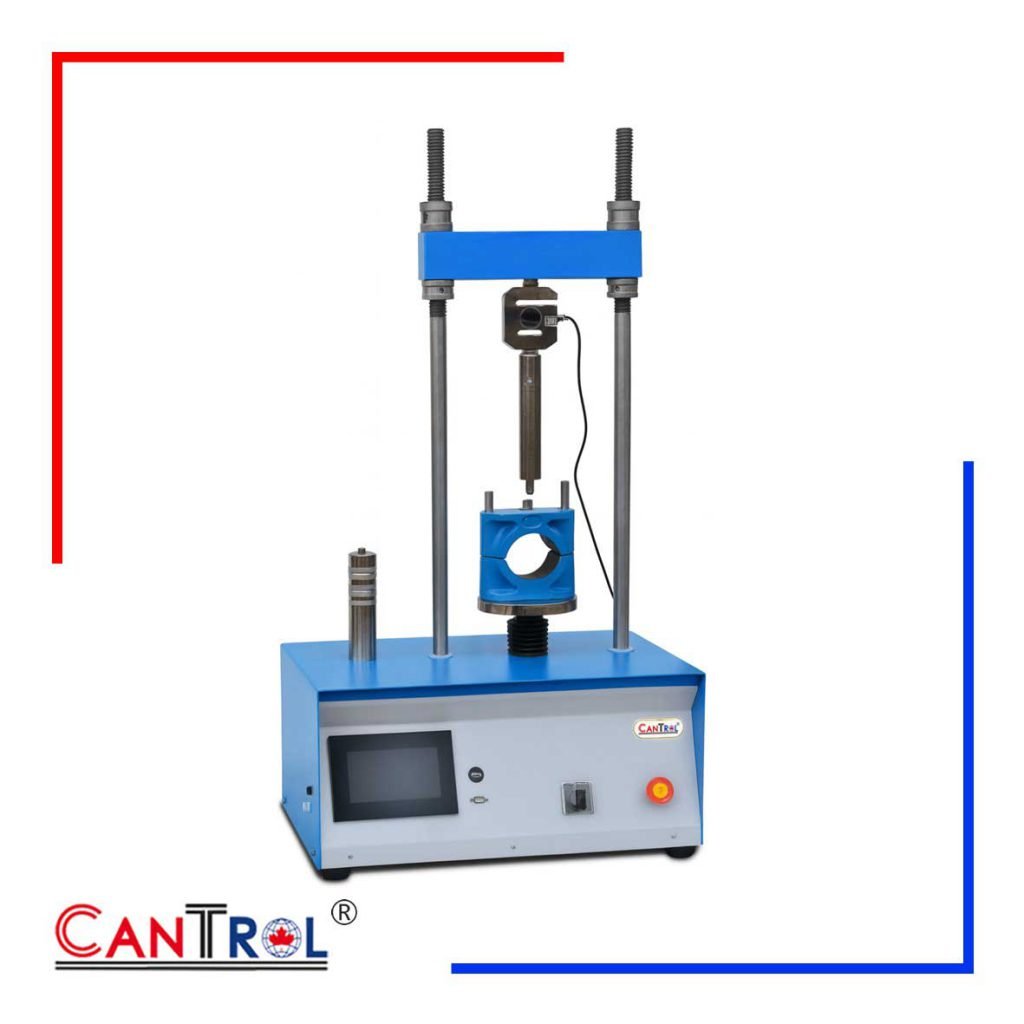

Automatic CBR/Marshall Test Machine

Automatic CBR/ Marshall Testing Machine Multispeed automatic compression testing machine with digital control and readout unit, Force-Displacement (Flow) Graph (F-mm), motorized 70mm stroke ram, Two-Stainless Steel-column structure and adjustable crossbeam, Stainless Steel 50 Kn load cell, Internal Linear displacement transducer (LVT) and software for CBR and Marshall test separately. Automatic procedure of these two test started after the specimen is put on loading plate, the plate goes up at specific speed and Machine will stop automatically at the failure point and Loading plate will be returned in initial position. The online test result can be seen on display and F-L graph will be seen and printed.

Model	2814031
Description	Automatic CBR/Marshall Test Machine
Capacity	50 kN
Resolution	10 N
StrokeLimit	50 mm
Display	7», Touch Screen, Full Color
Displacement (Flowmeter)	LVDT 0.01 mm
Reporting Software	Processing and Report Generation Software, Microsoft Excel
Dimension	700x470x1240 mm
Weight	125 kg
