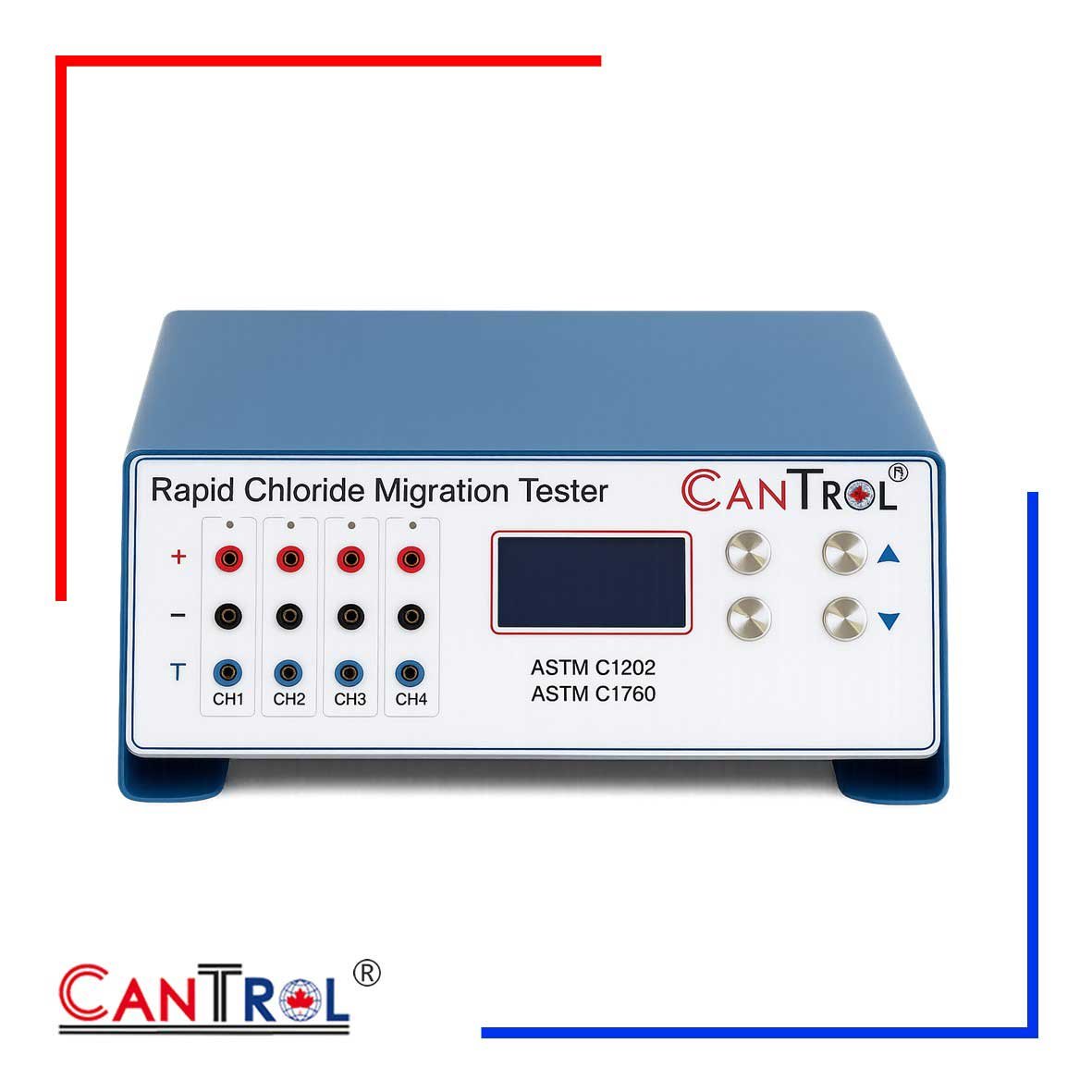

Rapid Chloride Migration Test (RCMT)

In this test, by applying a specific Voltage (from 5 to 60 V) along the height of the sample, chlorine ions are forced to migrate into the sample. After a specific time (from 6 to 96 hours), the sample is cut in half along the height and the silver nitrate solution is spread on one of its surfaces and the penetration depth is measured (white part). Finally, the chlorine ion migration rate is calculated using the penetration depth and the concrete is classified.

Model	?
Description	Rapid Chloride Migration Test (RCMT)
Channels	4 Independent
Temp. Measurement	0-100 Celsius
Current Measurement	0-600 mA
Voltage	5-60 VDC
Power Supply	110 V, 60 Hz,/ 220 V , 50 Hz.
Display	LCD
Communication Port	USB
Calibration Method	Software
